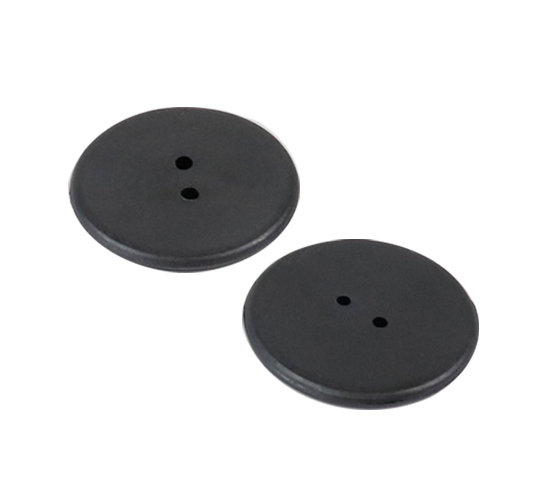

This UHF durable button tag, which is made of sealed PPS and epoxy materials,with high temperature resistance and aggressive chemicals.
It is the perfect solution in laundry applications.
Color | Black |
Material | PPS |
RFID working frequency | 860-960MHz |
RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
Chip Type | Alien H3 or others |
EPC storage space | 96-128bits |
User storage space | 0-512bits |
RFID reading distance | >2m(depends on your reader) |
Operating Temperature | -35°C to 85 °C (-22 °F to 185 °F) |
Washing times | More than 200pcs |
Diameter | Ø 25.4 mm |
Thickness | 3.8mm |

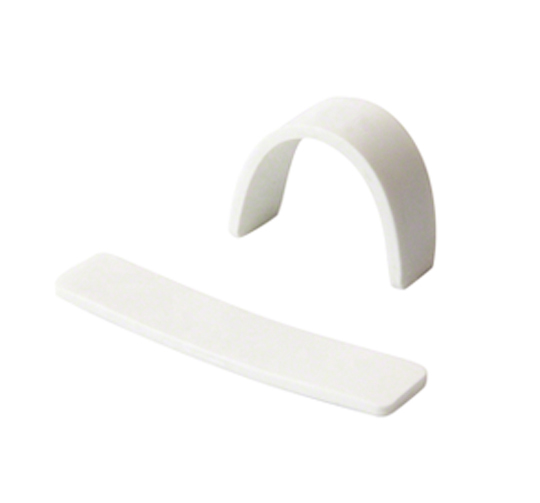

The silicone UHF rfid tag for the laundry industry.
It is made of environmentally friendly silicone material, with built-in RFID chip,
can be applied to a variety of washing environment.
Color | White |
Material | Silicone |
RFID working frequency | 860-960MHz |
RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
Chip Type | Alien H3 or others |
EPC storage space | 96-128bits |
User storage space | 0-512bits |
RFID reading distance | 1-6m(depends on your reader) |
Washing times | More than 200pcs |
Operating Temperature | Washing 90℃(194°F), 15 minutes |
Length | 55mm |
Width | 12mm |
Height | 2.5mm |

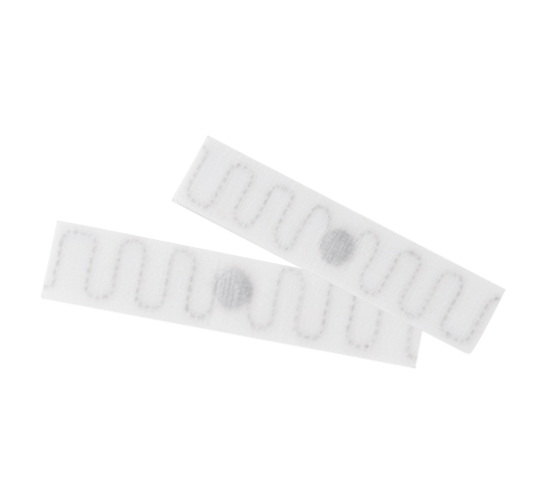

This rfid textile washable tag use materials polyester fiber and antenna design,which is extremely flexible, soft and durable, ideal for flat linens and garments.
Color | White |
Material | Textile |
RFID working frequency | 860-960MHz |
RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
Chip Type | NXP Ucode7M or others |
EPC storage space | 96-128bits |
User storage space | 0-512bits |
RFID reading distance | 1-5m(depends on your reader) |
Washing times | More than 200pcs |
Operating Temperature | Washing 90℃(194°F), 15 minutes |
Length | 70mm |
Width | 10mm |
Height | 1.5mm |

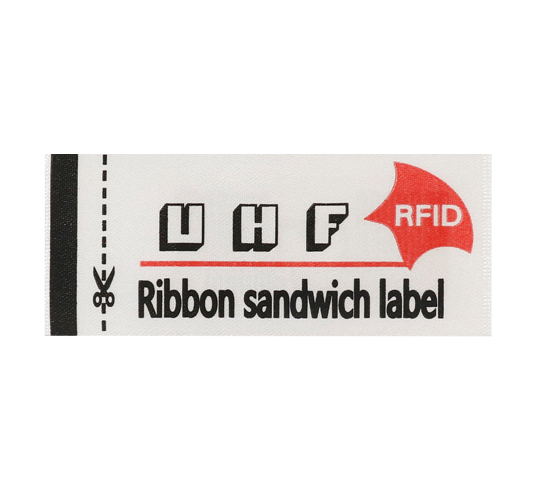

RFID garment tag composed of soft textile package, RFID chip inside.
Widely used in the field of clothing sales, manufacturer management or raw material control.
Color | Any printing can be customized |
Material | Woven |
RFID working frequency | 860-960MHz |
RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
Chip Type | Different chips are available |
EPC storage space | 96-128bits |
User storage space | 0-512bits |
RFID reading distance | 1-5m(depends on your reader) |
Length | 66mm |
Width | 27mm |

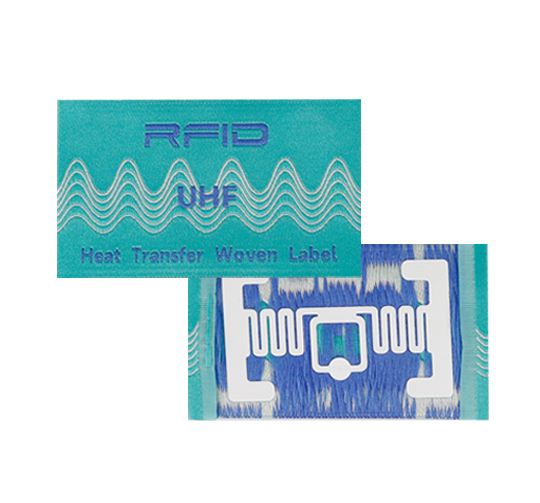

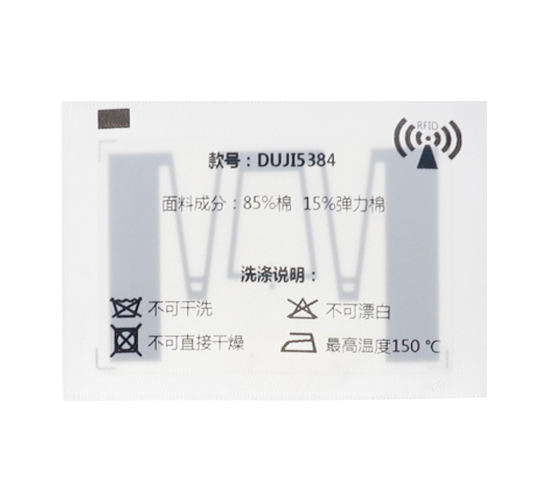

RFID textile tag is the most outstanding application where RFID technology impacts on clothing industry.
Color | Any printing can be customized |
Material | Woven |
RFID working frequency | 860-960MHz |
RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
Chip Type | Different chips are available |
EPC storage space | 96-128bits |
User storage space | 0-512bits |
RFID reading distance | 1-5m(depends on your reader) |
Length | 65mm |
Width | 44mm |

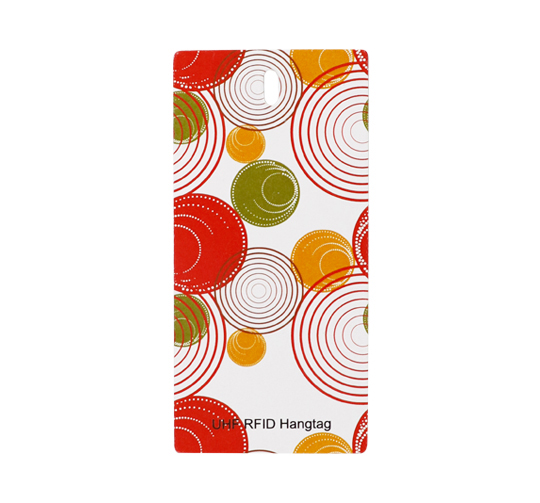

This UHF rfid hang tags are mainly made by paper and easy to embed the rfid inlay into hang tag. Brand logo, size, item number,
barcode and some information can be printed on the tag.
Color | Any printing can be customized |
Material | Paper |
RFID working frequency | 860-960MHz |
RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
Chip Type | Different chips are available |
EPC storage space | 96-128bits |
User storage space | 0-512bits |
RFID reading distance | 1-5m(depends on your reader) |
Length | 71mm |
Width | 54mm |

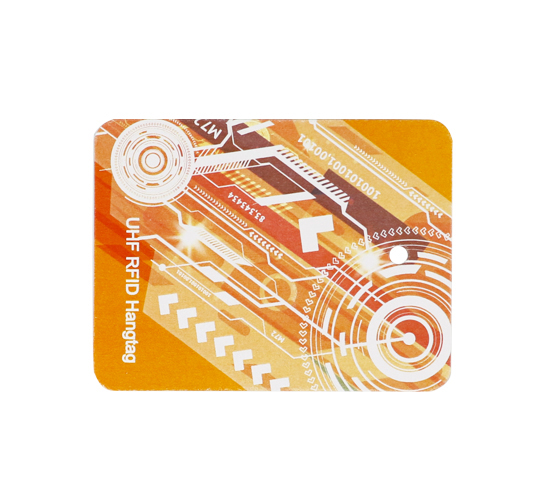

Well Designed hang tag, embed the rfid inlay, mainly used for clothing storage and logistics. Brand logo, size, item number, barcode and different informations can be printed on the tag.
Color | Any printing can be customized |
Material | Paper |
RFID working frequency | 860-960MHz |
RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
Chip Type | Different chips are available |
EPC storage space | 96-128bits |
User storage space | 0-512bits |
RFID reading distance | 1-5m(depends on your reader) |
Length | 94mm |
Width | 45mm |
Woven clothing neck label tag is widely used for different garment,
any printing and color can be customized.
Color | Any printing can be customized |
Material | Paper |
RFID working frequency | 860-960MHz |
RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
Chip Type | Different chips are available |
Different chips are available | 96-128bits |
User storage space | 0-512bits |
RFID reading distance | 1-5m(depends on your reader) |
Length | 67mm |
Width | 39mm |

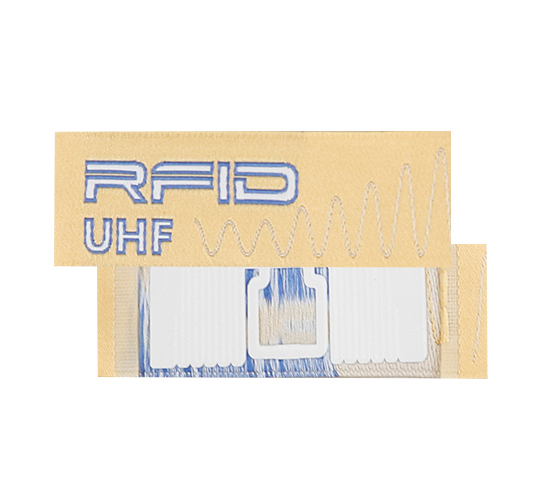

This small rfid woven clothing neck label tag is widely used for different garment,any printing and color can be customized.
Color | Any printing can be customized |
Material | Paper |
RFID working frequency | 860-960MHz |
RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
Chip Type | Different chips are available |
EPC storage space | 96-128bits |
User storage space | 0-512bits |
RFID reading distance | 1-5m(depends on your reader) |
Length | 58mm |
Width | 20mm |
Asset management;Warehouse management;Logistics management;Production automation management;Library management;clothing management;
Healthcare management;Anti-counterfeit.
